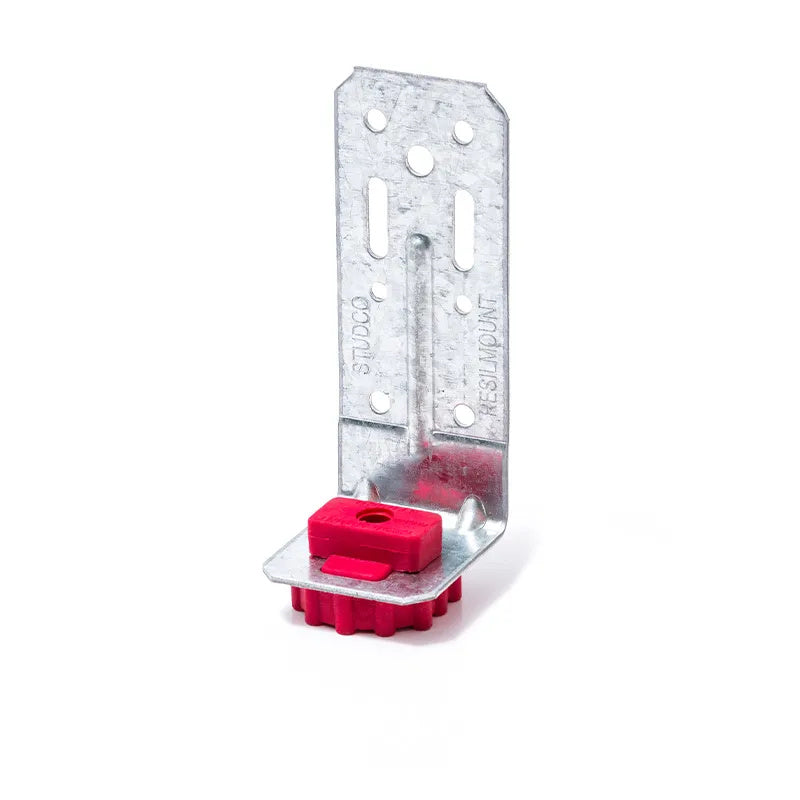

Resilmount A48R

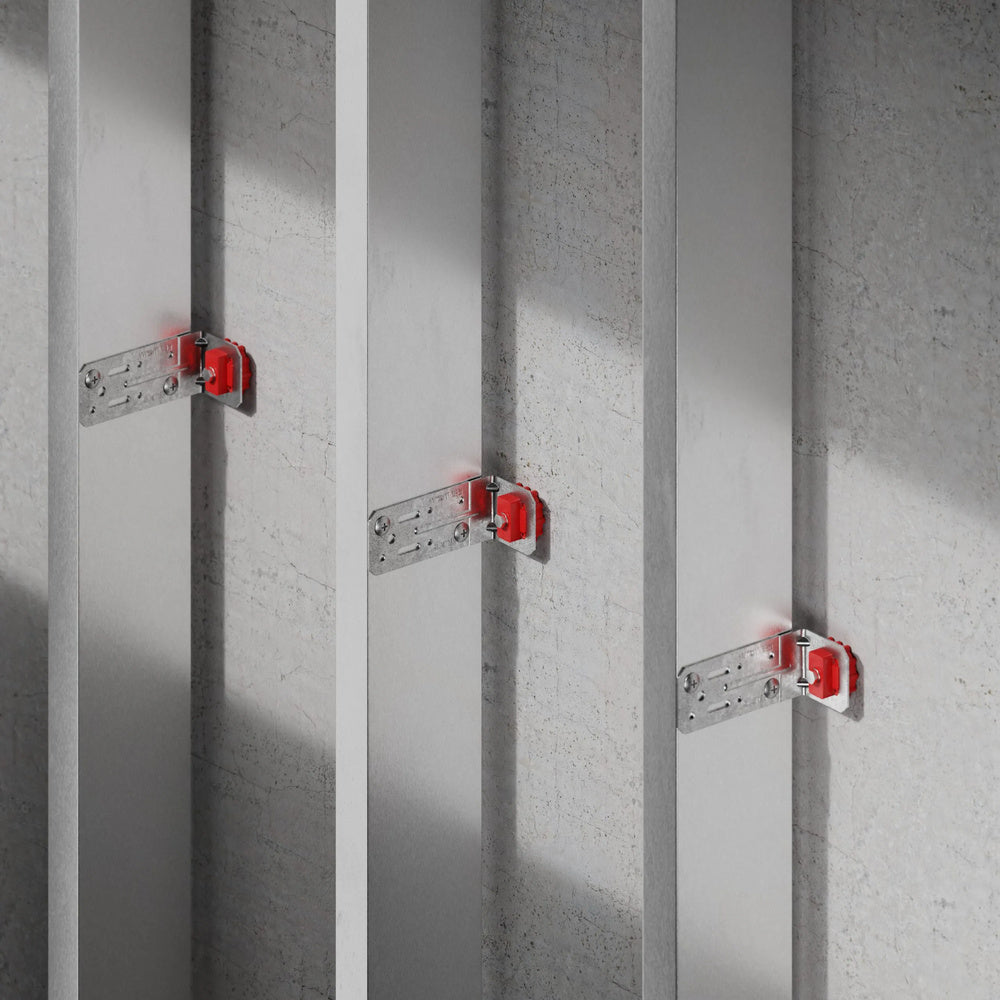

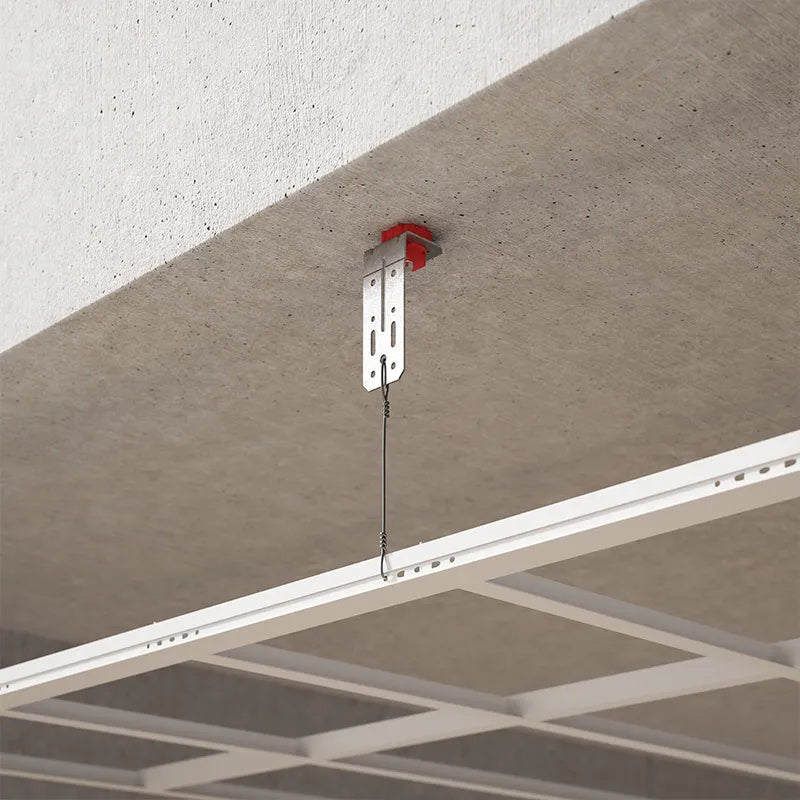

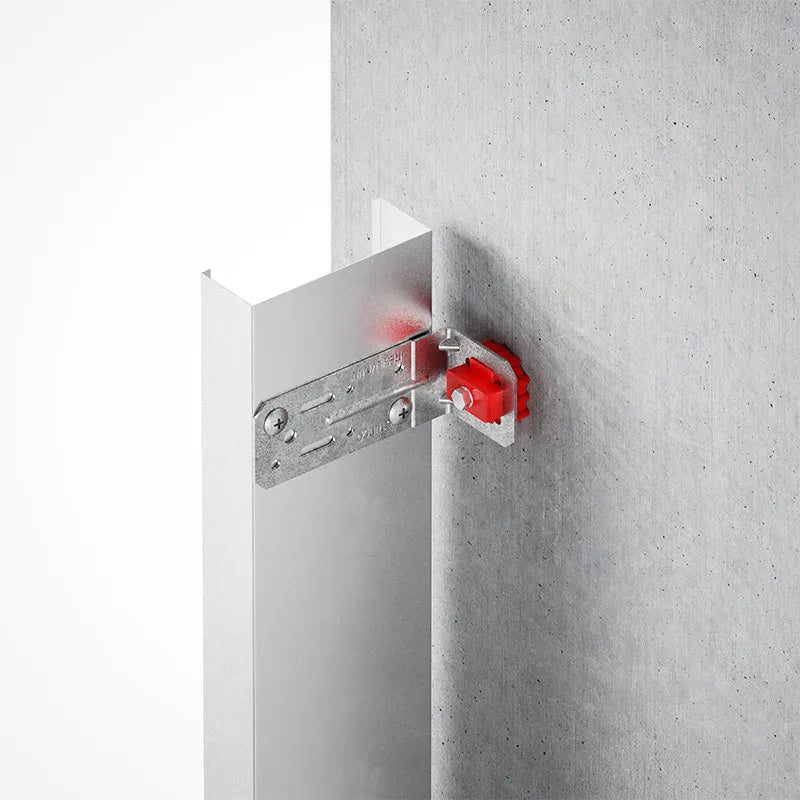

The Resilmount A48R is a patented, engineered acoustic resilient bracket designed to reduce airborne and structure-borne vibration in internal wall and ceiling applications. It braces acoustic wall systems to the structure without compromising sound or vibration transmission requirements. Its versatility extends beyond walls, making it suitable for decoupling almost any element from the structure, including garage door motors and lockers.

Resilmount's patented thermoplastic rubber delivers superior sound absorption over standard rubber, while the unique sound cell design minimizes contact surface area with the substrate, effectively breaking up airborne sound at the point of transfer. The strong column design maintains maximum structural integrity while keeping the acoustic isolation intact. Multiple 3/16" slotted holes in the bracket surface accommodate direct fastening applications, and a 1/4" hole suits common fittings including 3/16" suspension rod.

Manufactured under an ISO 9001 quality control system, ensuring consistent, reliable performance on every project.
