Resilmount A130R

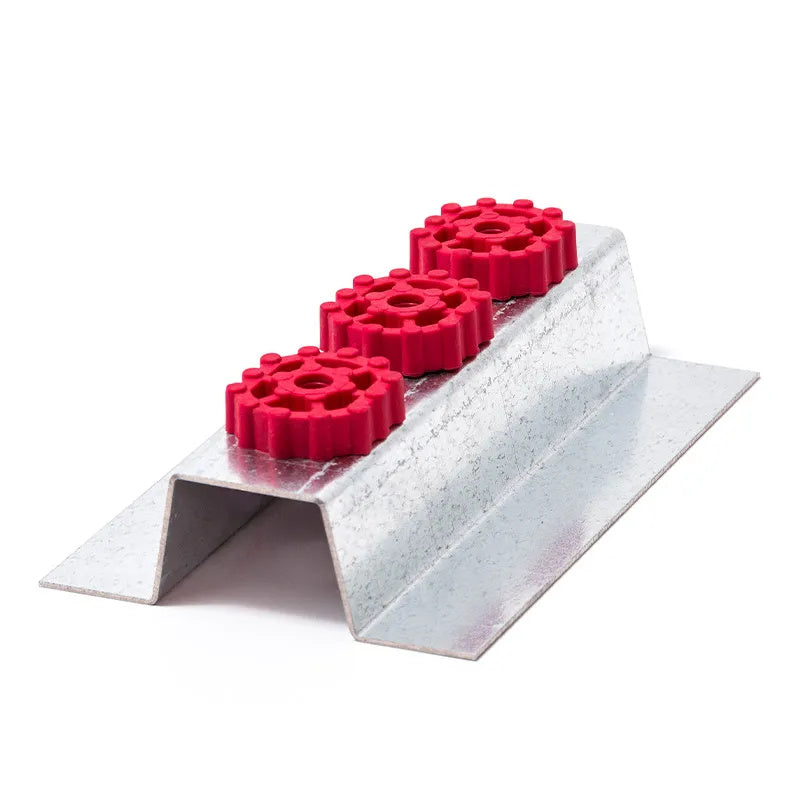

The Resilmount A130R is a patented, engineered heavy duty acoustic isolation bracket designed to reduce airborne and structure-borne noise in wall applications. Mounted between the wall and the structure, it delivers robust acoustic isolation for demanding projects where standard brackets are not sufficient.

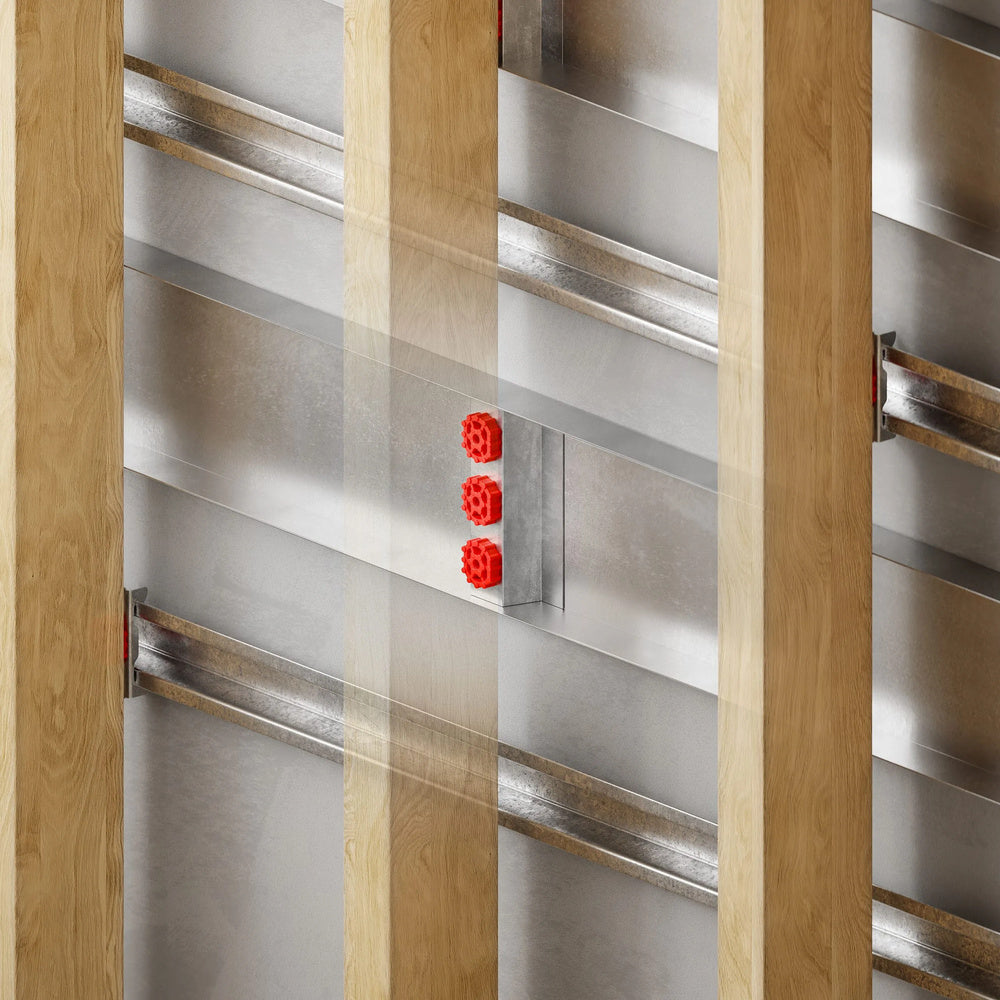

Designed to fit inside a 6" metal track, the A130R features wider flanges for easier fastening, with all three clips screwing directly into the stud or framing and the metal track fastened a minimum of four times per clip. Its height is matched to the A237R and standard 7/8" furring channel combination, making it straightforward to integrate into existing system layouts. The bracket ships fully assembled with no site assembly required, and installs easily into new or existing wall systems.

With an acoustical design load of 110 lbs, the A130R is built for heavy duty applications, and is manufactured under an ISO 9001 quality control system, ensuring consistent, reliable performance on every project.
